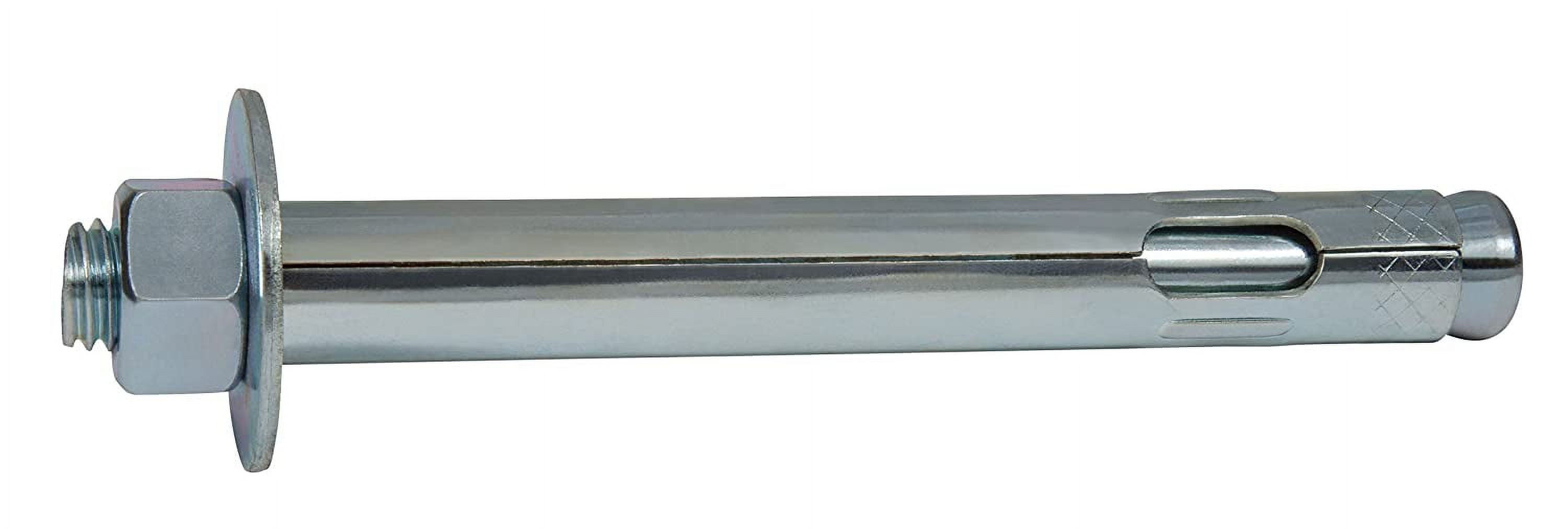

CONFAST 3/8" x 4" Hex Sleeve Anchor Zinc Plated (25 per Box)
4.1 (77 items)
Limited Time Sale$17.96 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 231000816 | Release Date | 2026/06/18 | List Price | $11.98 | Model Number | 231000816 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

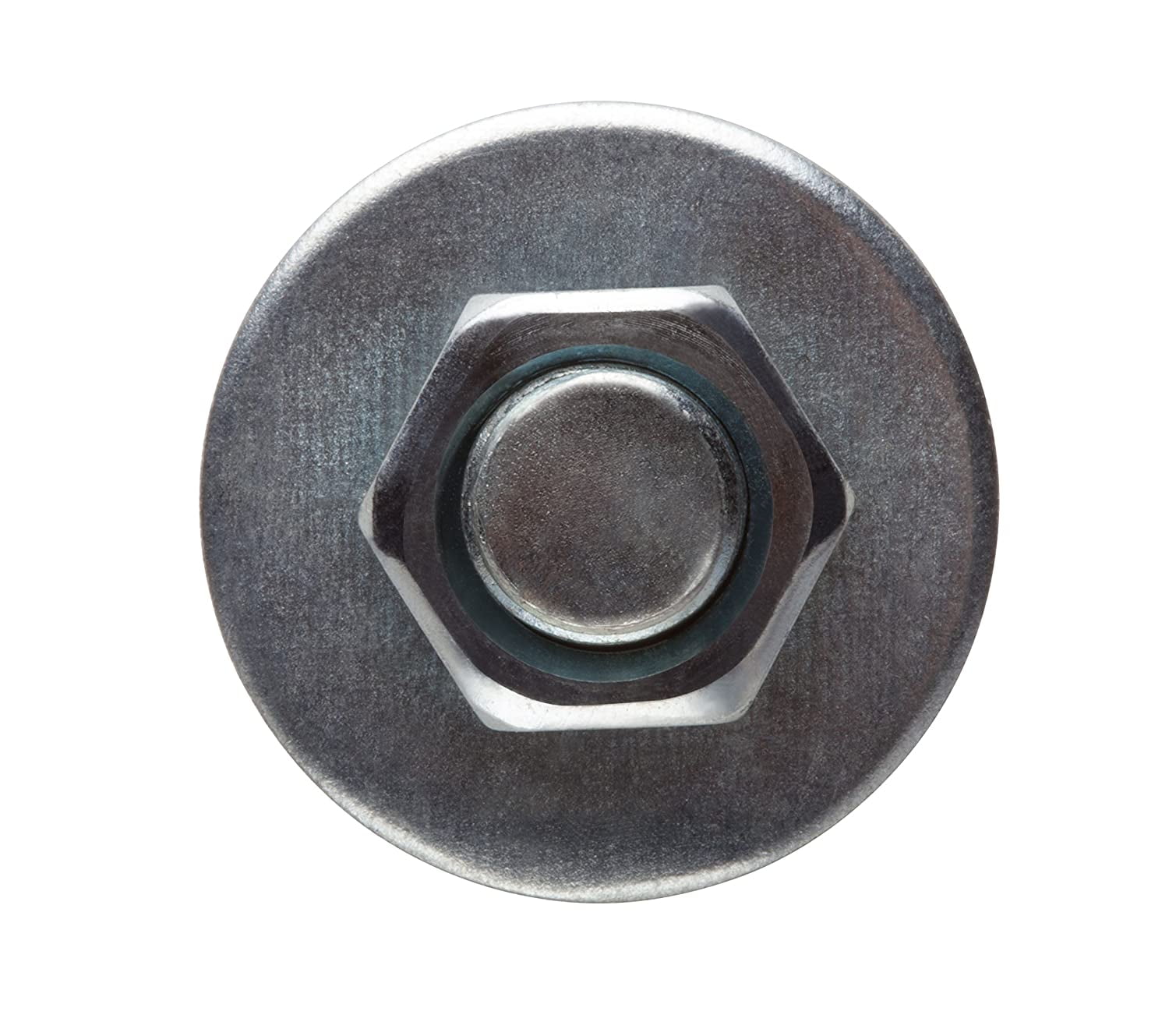

<p>Applications</p><p>The anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete, Block, and Brick.</p><p></p><p>Environment</p><p>The anchor is designed for use in a Dry environment.</p><p></p><p>Head Style </p><p>The anchor is a Hex head and is designed to allow the head to sit on top of the surface of the item being attached.</p><p></p><p>Hole Diameter/Bit Diameter</p><p>The anchor requires a 3/8" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.</p><p></p><p>Diameter of Anchor </p><p>The diameter of the anchor is 3/8".</p><p></p><p>Length Anchor </p><p>The length of the anchor is 4"</p><p>Minimum Embedment</p><p>The minimum anchor embedment into the concrete is 1-1/4". Therefore, the anchor must be installed so that a minimum of 1-1/4" of the anchor is embedded into the concrete.</p><p></p><p>Maximum Fixture Thickness</p><p>The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 2-3/4". This will ensure that the minimum embedment of 1-1/4" will be met.</p><p></p><p>Fixture Hole Diameter</p><p>The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/8" diameter anchor requires the hole in the fixture to be 1/2".</p><p></p><p>Spacing between Anchors</p><p>Each anchor must be spaced a minimum distance of 3-3/4" from each other when measured center to center.</p><p></p><p>Edge Distance</p><p>It is very important not to install the anchor any closer than 1-7/8" from an unsupported edge of the concrete.</p>
- VERSATILE - Can be installed in a wide variety of masonry, solid concrete, brick or block
- 360 DEGREE EXPANSION - Provides consistent holding values in a wide range of base materials
- PRE-ASSEMBLED - Ready to install no separate parts required
- ALL STEEL PARTS - Heavy duty for the most demanding jobs
| Hardware anchor type | Concrete |
|---|---|
| Rec. use | Concrete |
| Installation type | In-Ground |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Brand | CONFAST |
| Features | Easy Installation |
| Color | Zinc Plated |
| Model | SAH384 |
| Has written warranty | No |
